Maximize Performance with Double Ferrule Compression Fittings: A Comprehensive Guide

Double ferrule compression fittings provide a secure, leak-tight seal in high-pressure fluid systems. Easy to install and maintain.

Double Ferrule Compression Fittings are an essential component in many industrial applications where a leak-proof connection is crucial. These fittings are designed to create a secure and reliable connection between two pipes or tubing systems. Unlike other types of fittings, double ferrule compression fittings use a unique mechanism that involves two ferrules, providing increased stability and efficiency. Moreover, these fittings are versatile and can be used with a wide range of materials such as stainless steel, copper, and brass, making them a popular choice among engineers and technicians.

Introduction

Double ferrule compression fittings are used to connect two pipes together without welding or threading. These fittings are widely used in various industries such as oil and gas, chemical, pharmaceutical, and food and beverage. The double ferrule compression fittings provide a leak-proof seal and a reliable connection between two pipes. In this article, we will discuss the construction, working, advantages, and applications of double ferrule compression fittings.

Construction of Double Ferrule Compression Fittings

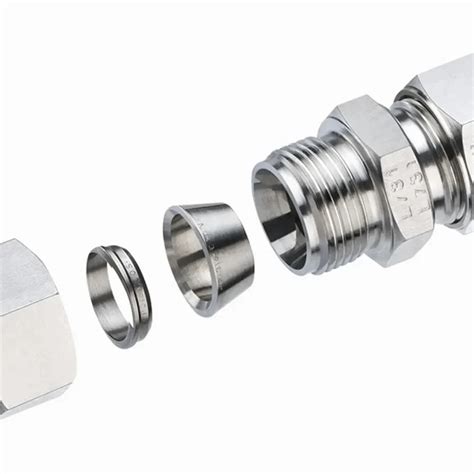

A double ferrule compression fitting consists of four main components- a body, front ferrule, back ferrule, and nut. The body is a hollow cylindrical-shaped metal piece that connects two pipes together. The front and back ferrules are small metal rings that are placed over the pipe before inserting it into the body. The front ferrule is designed to grip the pipe while the back ferrule creates a seal between the fitting and the pipe. The nut compresses the two ferrules onto the pipe, creating a tight and secure seal.

Working of Double Ferrule Compression Fittings

The working of double ferrule compression fittings is quite simple. Firstly, the front and back ferrules are placed over the pipe, and then the pipe is inserted into the body of the fitting. The nut is then tightened, which compresses the two ferrules onto the pipe. This creates a seal between the pipe and fitting, which prevents any leakage of fluid or gas. The double ferrule compression fittings can be easily installed without using any special tools.

Advantages of Double Ferrule Compression Fittings

Double ferrule compression fittings offer numerous advantages over other types of fittings. Some of the key benefits include:

Leak-Proof Seal:

The double ferrule compression fittings provide a leak-proof seal, which ensures that no fluid or gas leaks from the joint. This makes them ideal for use in critical applications where leakage can cause significant damage or loss.

Easy to Install:

Double ferrule compression fittings can be easily installed without using any special tools. They are designed to be installed quickly and easily, which saves time and reduces installation costs.

Reliable Connection:

The double ferrule compression fittings provide a reliable connection between two pipes. The connection is secure, and there is no risk of the fitting coming loose or separating from the pipe.

Wide Range of Applications:

Double ferrule compression fittings can be used in a wide range of applications, including oil and gas, chemical, pharmaceutical, and food and beverage. They are suitable for use with various types of pipes, including stainless steel, copper, and plastic.

Applications of Double Ferrule Compression Fittings

Double ferrule compression fittings are used in a wide range of industries and applications. Some of the key applications include:

Oil and Gas Industry:

Double ferrule compression fittings are widely used in the oil and gas industry to connect pipes and tubing. They are ideal for use in high-pressure applications where a reliable, leak-proof seal is essential.

Chemical Industry:

Double ferrule compression fittings are commonly used in the chemical industry to connect pipes and tubing. They are resistant to corrosion and can withstand high temperatures and pressures.

Pharmaceutical Industry:

Double ferrule compression fittings are used in the pharmaceutical industry to connect pipes and tubing. They are designed to meet stringent hygiene and cleanliness standards and are easy to clean and maintain.

Food and Beverage Industry:

Double ferrule compression fittings are used in the food and beverage industry to connect pipes and tubing. They are designed to meet strict hygiene standards and are resistant to corrosion and contamination.

Maintenance of Double Ferrule Compression Fittings

Double ferrule compression fittings require minimal maintenance to ensure optimal performance. Here are some tips for maintaining double ferrule compression fittings:

Inspect the Fittings Regularly:

Inspect the fittings regularly to check for any signs of wear or damage. If you notice any cracks, dents, or other signs of damage, replace the fitting immediately.

Clean the Fittings:

Clean the fittings regularly to remove any dirt, debris, or other contaminants. Use a mild detergent solution and a soft cloth to clean the fittings thoroughly.

Tighten the Nut:

Tighten the nut regularly to ensure that the connection remains secure. However, be careful not to over-tighten the nut, as this can damage the ferrules and the pipe.

Conclusion

Double ferrule compression fittings are widely used in various industries due to their numerous benefits, including reliability, ease of installation, and leak-proof seal. These fittings offer a secure and reliable connection between two pipes, making them ideal for use in critical applications. With regular maintenance, double ferrule compression fittings can provide years of trouble-free service.

Introduction: Understanding Double Ferrule Compression Fittings

Double ferrule compression fittings are widely used in various industries such as oil and gas, chemical, and petrochemical. These fittings are designed to join two pieces of tubing or piping together in a leak-tight manner. The use of double ferrule compression fittings can significantly reduce the chances of leaks and improve the overall safety of the system. In this article, we will explore the features and advantages of double ferrule compression fittings.

Features of Double Ferrule Compression Fittings

Double ferrule compression fittings are made up of four key components: the body, front ferrule, rear ferrule, and nut. The front and rear ferrules are designed to grip the tubing tightly, while the nut compresses the ferrules onto the tubing to provide a leak-tight seal. The body of the fitting is designed to withstand high pressure and vibrations, making it suitable for harsh operating conditions.

Advantages of Double Ferrule Compression Fittings

One of the primary advantages of double ferrule compression fittings is that they provide a reliable and leak-tight seal. The use of ferrules ensures that there is no loss of pressure or fluid, which can be essential in critical applications. Additionally, double ferrule compression fittings are easy to install and disassemble, making maintenance and repairs simple.

Materials Used in Double Ferrule Compression Fittings

Double ferrule compression fittings can be made from a variety of materials, including stainless steel, brass, and carbon steel. The selection of material depends on the application and the operating conditions. Stainless steel is often preferred for its corrosion resistance, while brass is commonly used in low-pressure applications.

Design Considerations for Double Ferrule Compression Fittings

When designing a double ferrule compression fitting, it is essential to consider the pressure and temperature of the operating environment, as well as the chemical compatibility of the materials being used. The design must also ensure that the ferrules are properly aligned and that the nut is tightened to the appropriate torque.

Assembly and Installation of Double Ferrule Compression Fittings

When installing a double ferrule compression fitting, it is important to follow the manufacturer's instructions carefully. The tubing should be cut to the correct length and deburred to prevent damage to the ferrules. The ferrules must be properly aligned, and the nut should be tightened to the appropriate torque.

Inspection and Maintenance of Double Ferrule Compression Fittings

Regular inspection and maintenance of double ferrule compression fittings are essential to ensure that they continue to function effectively. This includes checking for leaks, replacing worn or damaged parts, and lubricating the fittings as necessary. It is also important to ensure that the fittings are not over-tightened, as this can damage the ferrules.

Applications of Double Ferrule Compression Fittings

Double ferrule compression fittings are used in a wide range of applications, including oil and gas pipelines, chemical processing plants, and food and beverage production facilities. They are also commonly used in laboratory and research settings. Their versatility and reliability make them an ideal choice for many applications.

Limitations of Double Ferrule Compression Fittings

While double ferrule compression fittings have many advantages, they are not suitable for all applications. They may not be able to withstand high temperatures or extreme pressures, and they may not be compatible with all types of fluids. It is essential to select the right fitting for the specific application to ensure safety and reliability.

Conclusion: Selecting the Right Double Ferrule Compression Fittings

Double ferrule compression fittings are an essential component in many industries, providing a reliable and leak-tight connection between piping and tubing. By understanding their features, advantages, and limitations, you can select the right fittings for your specific application. Proper installation, maintenance, and inspection are critical to ensuring the safety and reliability of the system.

Double Ferrule Compression Fittings are mechanical devices used for joining two tubes or pipes together in a secure and leak-proof manner. These fittings are widely used in various industries such as oil and gas, chemical processing, and aerospace.

Storytelling:

John was a maintenance engineer at an oil refinery plant. He was responsible for maintaining the pipelines that transported oil from one place to another. One day, he noticed a leak in one of the pipelines, which resulted in the loss of oil and posed a safety hazard to the workers in the vicinity. John immediately shut down the pipeline and inspected it thoroughly.

Upon inspection, John found that the existing fittings used to join the two pipes were worn out and needed replacement. That's when he decided to use Double Ferrule Compression Fittings. John had heard about these fittings from his colleagues and knew that they were reliable and durable.

He ordered the fittings and replaced the old ones with the new Double Ferrule Compression Fittings. The installation process was straightforward, and the fittings fit perfectly, creating a tight seal that prevented any leaks. John tested the pipeline and was satisfied with the results. He knew that the Double Ferrule Compression Fittings would ensure the safety of the workers and prevent any loss of oil.

Point of View:

Double Ferrule Compression Fittings are essential components in various industries where safety and reliability are crucial. These fittings provide a secure and leak-proof connection between two pipes or tubes, preventing any accidents and minimizing the risk of financial loss due to oil or chemical spills.

The use of Double Ferrule Compression Fittings has become increasingly popular due to their numerous advantages over traditional fittings. These fittings are relatively easy to install, require minimal maintenance, and are compatible with various types of pipes and tubes.

In addition, Double Ferrule Compression Fittings are designed to withstand high pressures and temperatures, making them ideal for use in harsh environments. They are also resistant to corrosion and erosion, ensuring that they last longer than traditional fittings.

1. The double ferrule design provides a secure connection by compressing the tube between two ferrules.
2. The fittings are easy to install and require minimal maintenance.
3. They are compatible with various types of pipes and tubes.
4. Double Ferrule Compression Fittings can withstand high pressures and temperatures, making them ideal for use in harsh environments.
5. They are resistant to corrosion and erosion, ensuring that they last longer than traditional fittings.

Therefore, it is essential to consider using Double Ferrule Compression Fittings in any industry where safety and reliability are paramount. These fittings provide a cost-effective solution that ensures the safe and efficient operation of pipelines and other equipment.

In conclusion, Double Ferrule Compression Fittings are a highly efficient and reliable way of connecting tubes and pipes in various industrial applications. With their unique design, they offer an excellent seal, prevent leakages, and are easy to install. These fittings are an ideal choice for high-pressure and high-temperature applications, where safety and performance are crucial.

Double Ferrule Compression Fittings come in different sizes, materials, and configurations, depending on the specific application requirements. Choosing the right fitting can be a daunting task, but with proper research and consultation with experts, you can find the best option for your needs. It is also essential to ensure that the fittings you choose meet the relevant industry standards and regulations.

Finally, we hope that this article has provided you with valuable insights into Double Ferrule Compression Fittings and their applications. Whether you are a professional in the industry or a novice looking to learn more about fittings, we encourage you to explore the vast range of possibilities that Double Ferrule Compression Fittings offer. Thank you for reading, and we wish you all the best in your future endeavors!

Double ferrule compression fittings are commonly used in industries for connecting two tubes or pipes together. These fittings are known for their leak-tight seal and ease of installation. Here are some frequently asked questions about double ferrule compression fittings:

1. What is a double ferrule compression fitting?

A double ferrule compression fitting is a type of connector that joins two tubes or pipes together. It consists of two ferrules, one front and one back, that compress onto the tube when tightened. The ferrules create a seal between the tube and the fitting body, preventing leaks.

2. What materials are double ferrule compression fittings made of?

Double ferrule compression fittings can be made of various materials, including stainless steel, brass, and other alloys. The material used depends on the application and the environment it will be used in.

3. What are the advantages of using double ferrule compression fittings?

Double ferrule compression fittings offer several advantages, including:

• Leak-tight seal
• Easy installation
• No welding or threading required
• Reusable and easy to disconnect
• Can handle high pressures and temperatures
4. What sizes do double ferrule compression fittings come in?

Double ferrule compression fittings come in a wide range of sizes, from 1/16 inch to 2 inches, depending on the manufacturer and the application.

5. How do you install a double ferrule compression fitting?

The installation process for a double ferrule compression fitting involves inserting the tube into the fitting body, sliding the front and back ferrules onto the tube, and tightening the nut to compress the ferrules onto the tube. It is important to follow the manufacturer's instructions and use the correct tools to ensure a proper installation.

6. Are double ferrule compression fittings suitable for all types of fluids?

Double ferrule compression fittings are suitable for a wide range of fluids, including gases, liquids, and chemicals. However, it is important to choose the correct material and size of fitting for the specific application to ensure compatibility.
